Product Details

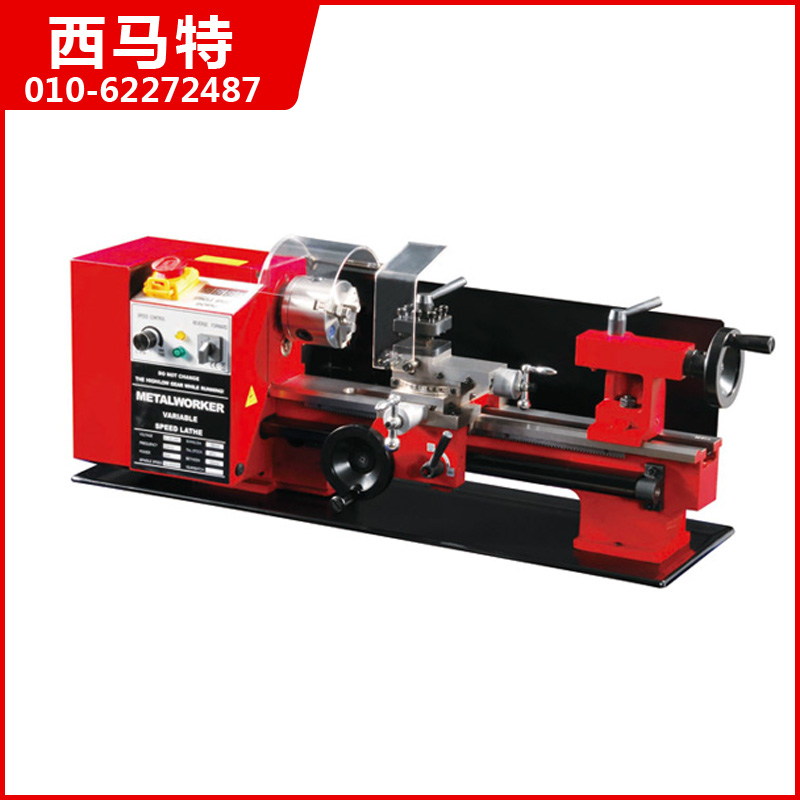

Products Name:C3 Mini Lathe

Key Feature:Constructed with cast iron giving great rigidity
                             Precision ground Vee bed slide ways
                             Fully featured saddle and carriage assembly including powered lead screw

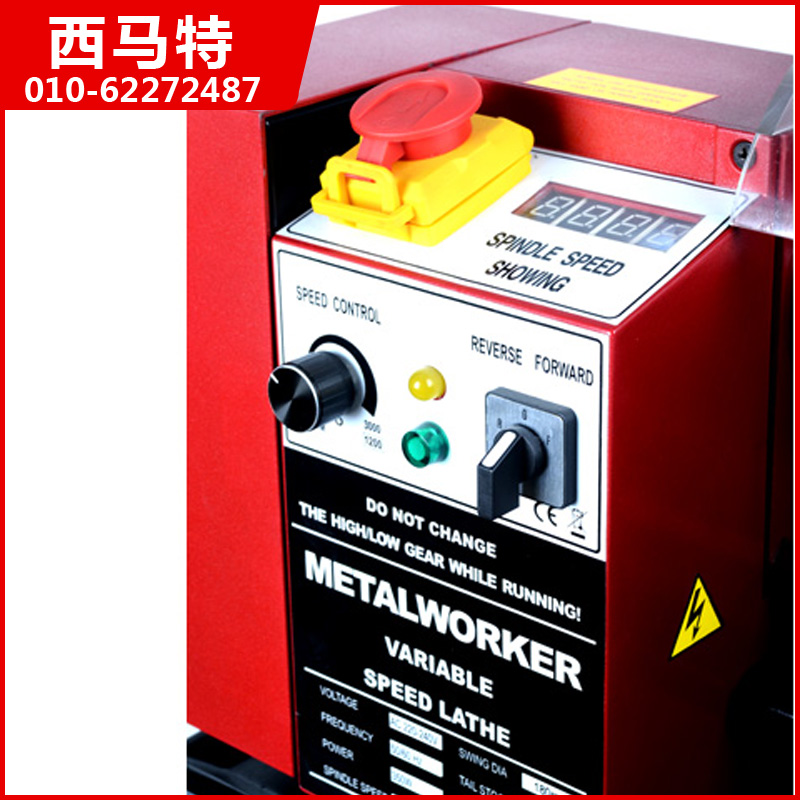

                             350W reversible motor with variable speed and a 2 speed gearbox
                             Supplied with, 80mm 3 jaw chuck, 2MT centre, change wheel set, wrench set

Specifications
Swing over bed   180 mm
Cross slide travel   65 mm
Compound travel    55mm
Motor output power   350 W
Distance between centers   350 mm
Hole through spindle   20 mm
Spindle taper   MT3
Tailstock taper   MT2
Spindle speed  Low range  100-1200 ±10% rpm
                      High range  100-3000 ±10% rpm
Thread of range  Metric version  0.4-2.0 mm (10 threads pitches)
                         Imperial version  12-52 TPI (18 threads pitches)
Overall dimension (LxWxH)   800x300x300 mm
Weight (Net/Gross)   44/50 kg
Packing Size (LxWxH)   870x340x380 mm

Optional Accessories

Serial No.	Item Description	Picture	Suitable for Models
S/N:10000	Stand Overall demension: 800*350*890mm		C0,C1,C2,SC2,C3 Z1,X0,X1,SX1,X2,SX2
S/N:10000A	Lux stand Overall demension: 1000*660*710mm		C0,C1,C2,SC2,C3 Z1,X0,X1,SX1,X2,SX2
S/N:10001	Knob & hand wheel		C2,C3,SC2,SC3
S/N:10002	Metric 9 pcs   30T/35T/40T 40T/45T/50T 60T/80T/80T		C2,C3,SC2,SC3
S/N:10003	Imperial 13 pcs   30T/35T/40T/40T 45T/45T/50T/55T 57T/60T/65T/80T/80T		C2,C3,SC2,SC3
S/N:10005	Cutter 11 pieces set DIN 4971R Straight cutter DIN 4972R Angle cutter DIN 4973R Bore cutter DIN 4974R Bore cutter DIN 4975 Tip cutter DIN 4976 Wide edge cutter DIN 4977R Right external turning cutter DIN 4978R External turning cutter DIN 4980L Left angle cutter DIN 4980R Right angle cutter DIN 4981R Cutter		CO,C1,C2,SC2,C3
S/N:10006	Cutter 6 pieces set DIN 4972R Angle cutter DIN 4973R Bore cutter DIN 4974R Bore cutter DIN 4976R Wide edge cutter DIN 4977R Right external turning cutter DIN 4978R External turning cutter		CO,C2,SC2
S/N:10007	Face plate￠160mm Bolt size 12mm		C2,C3,SC2,
S/N:10007A	Clamping kit for face plate Bolt size 8mm		C2,C3,SC2,
S/N:10008	Steady rest		C2,C3,SC2,
S/N:10009	Follow rest		C2,C3,SC2,
S/N:10010	￠80mm 4-jaw chuck		C1, C2,SC2,C3 X2P,SX3L,M1
S/N:10013	Spindle center MT#3		C2,SC2,C3
S/N:10014	Rolling center MT#2		C2,SC2,C3
S/N:10015	Lathe dog		C1,C2,SC2,C3,M1
S/N:10029A	￠100mm 4-jaw chuck with flange		C2,SC2,C3
S/N:10061	Vertical slider Slot size 50mm		C2，C3，SC2,
S/N:10064	Wood toolrest with center MT#3		C2，C3，SC2
S/N:10100	￠100mm 3-jaw chuck		C2,SC2,C3
S/N:10100A	￠100mm 3-jaw chuck whe flange		C2,SC2,C3
S/N:10131	Grinding attachment Spindle speed 0-6000±10%rpm Wheel size 80*20*10mm Motor outpower 250W Net/Gross weight 4/5kg		C2,SC2,C3
S/N:10136	Rocker tool post		C2，C3，SC2,
S/N:10140	DRCD kit		C2,SC2,C3
S/N:10147	Rolling tailstock chuck Dia.13mm+MT#2		C2,SC2,C3
S/N:10148	Mill chuck set(metric) chuck dia. 4,6,8,10,12,14,16mm		C2,C3,SC2,C3
S/N:10182	Carriage stop		C2,C3,SC2,

底座：S/N:10253D (860X310X890MM)
