Products Name:C1 Micro Lathe
Key Feature:Perfect introduction to metal turning
Small and lightweight, fits anywhere
Cast iron and steel construction

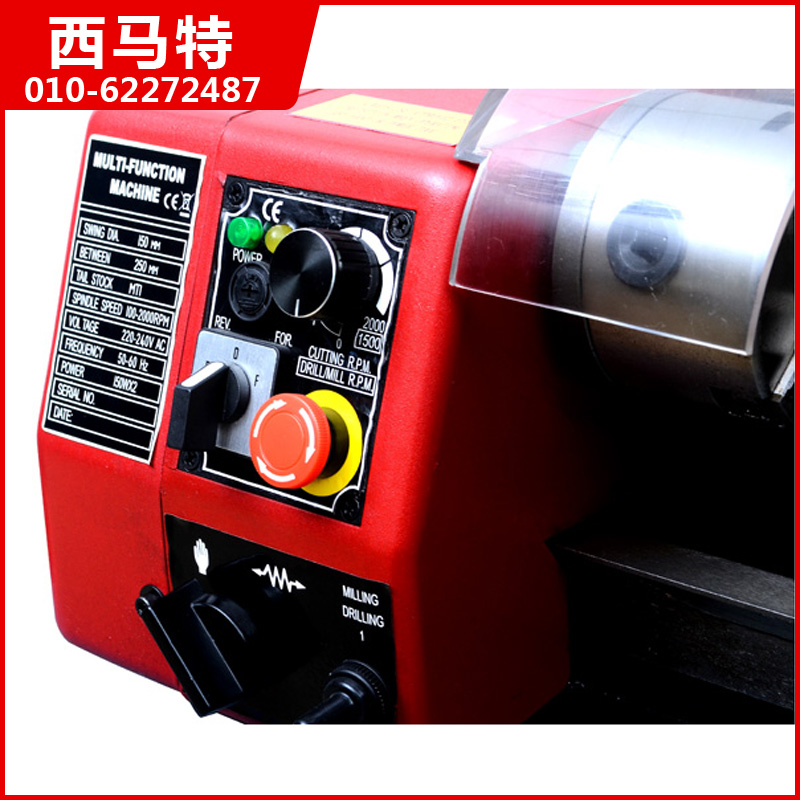

Electric variable speed control
Manual or powered leadscrew feed
Capacity 140mm diameter, 250mm between centres
Specifications
Swing over bed 140 mm
Distance between centers 250 mm
Hole through spindle 10 mm
Spindle taper MT2
Tailstock taper MT1
Spindle speed 100-2000 ±10% rpm
Cross slide travel 50 mm
Motor output power 150 W
Range of threads Metric version 0.5-1.25 mm (5 thread pitches)
Imperial version 16-24 TPI (5 thread pitches)
Overall dimension (LxWxH) 620x300x220 mm
Weight (Net/Gross) 23/32 kg
Packing size (LxWxH) 680x350x390 mm
Optional Accessories
|
Serial No. |
Item Description |
Picture |
Suitable for Models |
|
S/N:10000 |
Stand |
|
C0,C1,C2,SC2,C3
Z1,X0,X1,SX1,X2,SX2 |
|
S/N:10005 |
Cutter Set
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter |
|
CO,C1,C2,SC2,C3 |
|
S/N:10010 |
￠80mm 4-jaw chuck |
|
C1, C2,SC2,C3,X2P,SX3L,M1 |
|
S/N:10015 |
Lathe dog |
|
C1,C2,SC2,C3,M1 |
|
S/N:10035 |
Quick vice 50mm |
|
C1,X0,SX0,X1,
SX1,XN2,M1,SM4 |
|
S/N:10079 |
Face plate ￠112mm |
|
M1 |
|
S/N:10079A |
Clamping kit for face plate
Bolt size 6mm |
|
C1,M1 |
|
S/N:10080 |
Steady rest |
|
C1,M1 |
|
S/N:10081 |
Follow rest |
|
C1,M1 |
|
S/N:10082 |
Vertical slider
T-slot 8mm |
|
C1,M1 |
|
S/N:10083 |
Horizontal slider
Rotate angele ±40° |
|
C1,M1 |
|
S/N:10084 |
Thread cutting kits
(metric z=40,42,45,48,50,54,60) |
|
C1,M1 |
|
S/N:10085 |
Thread cutting kits
(imperial z=36,40,42,45,48,
50,54,57,60) |
|
C1,M1 |
|
S/N:10086 |
Wood tool rest+center(MT#2) |
|
C1,M1 |
|
S/N:10087 |
Ball head cutting set |
|
C1,M1 |
|
S/N:10088 |
Headstock center
(MT #2) |
|
C1,M1 |
|
S/N:10089 |
Tool holder
(Cut off blade holder
Boring cutter holder) |
|
C1,M1 |
|
S/N:10089A |
Tool
Cut-off blade size:70*2*10mm
Boring cutter Dia 10mm
|
|
C1 |
|
S/N:10090 |
Mill chuck set
(MT#2 3,4,5,6mm) |
|
C1,M1 |
|
S/N:10091 |
Tailstock chuck+shank
(MT #1,10mm) |
|
C1,M1 |
|
S/N:10093 |
Rolling center
(MT #1) |
|
C1,M1 |
|
S/N:10144 |
Quick change cutter rest |
|
C1,M1 |
|
S/N:10144-1 |
Tool post |
|
C1 |
|
S/N:10144-2 |
Cutter holder |
|
C1 | 底座：S/N:10253B (750X290X890MM)
