Product Details

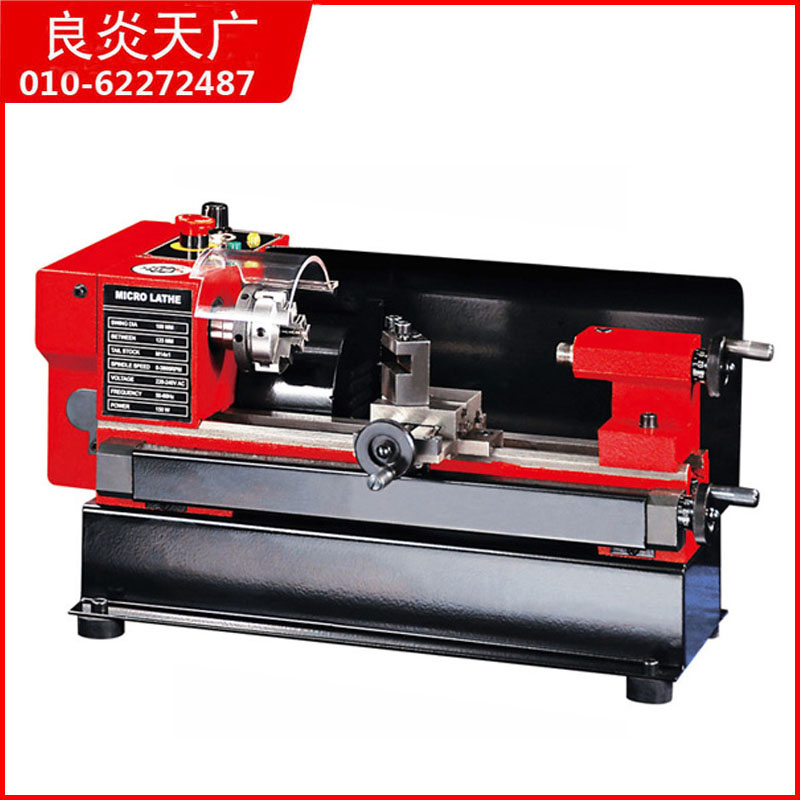

Products Name:CO Baby Lathe
Key Feature:Cast iron with ground, hardened slideways

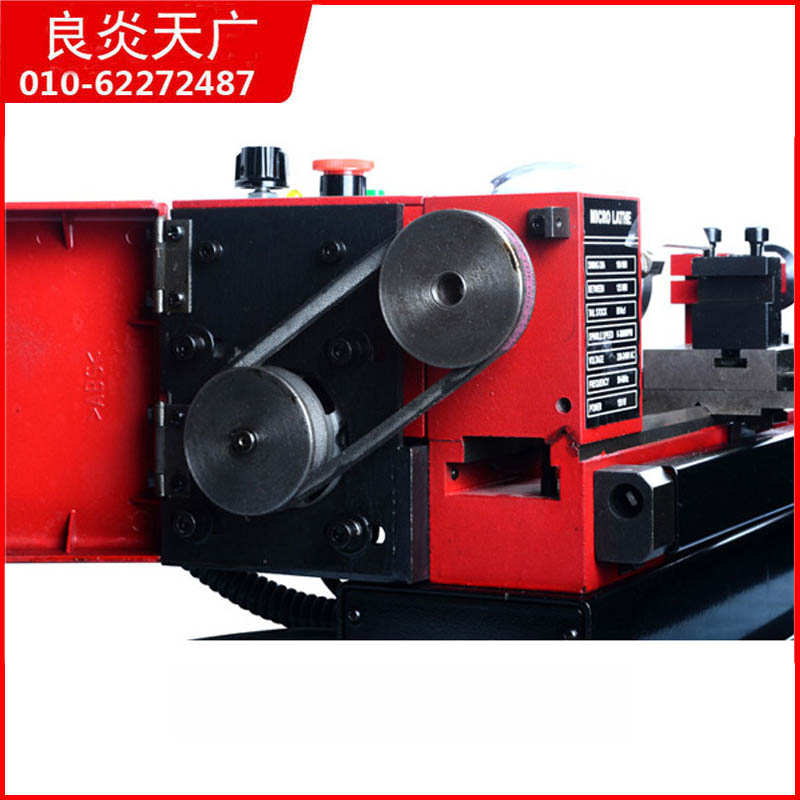

Belt driven, with variable speed
50mm self-centring 3 jaw scroll chuck
Chuck guard with a safety interlock
Supplied with 50mm 3 jaw chuck, wrench set and oil can
Optional Accessories
|
Serial No. |
Item Description |
Picture |
Suitable for Models |
|
S/N:10000 |
Stand
Overall dimension: 1000*660*710mm |
|
C0,C1,C2,SC2,C3
Z1,X0,X1,SX1,X2,SX2 |
|
S/N:10000A |
Lux Stand
Overall dimension:
800*350*890mm |
|
C0,C1,C2,SC2,C3
Z1,X0,X1,SX1,X2,SX2 |
|
S/N:10004 |
Cutter Set
DIN 4971R Straight cutter
DIN 4975 Tip cutter
DIN 4980R Right angle cutter
DIN 4980L Left angle cutter
DIN 4981R Cutter |
|
C0,C2,SC2,M1 |
|
S/N:10005 |
Cutter Set
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter |
|
CO,C1,C2,SC2,C3 |
|
S/N:10006 |
Cutter Set
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4976R Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter |
|
CO,C2,SC2 |
|
S/N:10152 |
Steady rest |
|
C0 |
|
S/N:10153 |
Auto feeder |
|
C0 |
|
S/N:10154 |
Angle cut rest
Rotate angle ±30° |
|
CO |
|
S/N:10155 |
2 way tool rest |
|
C0 |
|
S/N:10156 |
Rolling center
Φ 10mm |
|
C0 |
|
S/N:10157 |
Wood tool rest with center
Φ 10mm |
|
C0 |
|
S/N:10158 |
Face plate
Dia.Φ70mm
Slot size 8mm |
|
C0 |
|
S/N:10159 |
Tailstock chuck |
|
C0 |
|
S/N:10200 |
Cutter set (tips replacement)8x8 mm
DIN 4977R Right external turning cutter
DIN 4980L left cutter
DIN 4980R Right cutter
DIN 4975R Thread cutter
DIN 4981R Cutter |
|
C0,C2 |
| S/N:10200-1 |

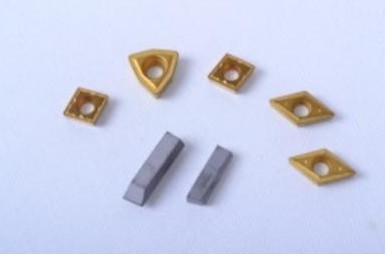

Tip replacement set |
 |
C0,C2 | Review
|  |
|
|
|
|
|
|
 |
