三个球轴承系统，带进给冷却管，适用于金刚钻锯条。也可用于普通锯条。
NO 28 187

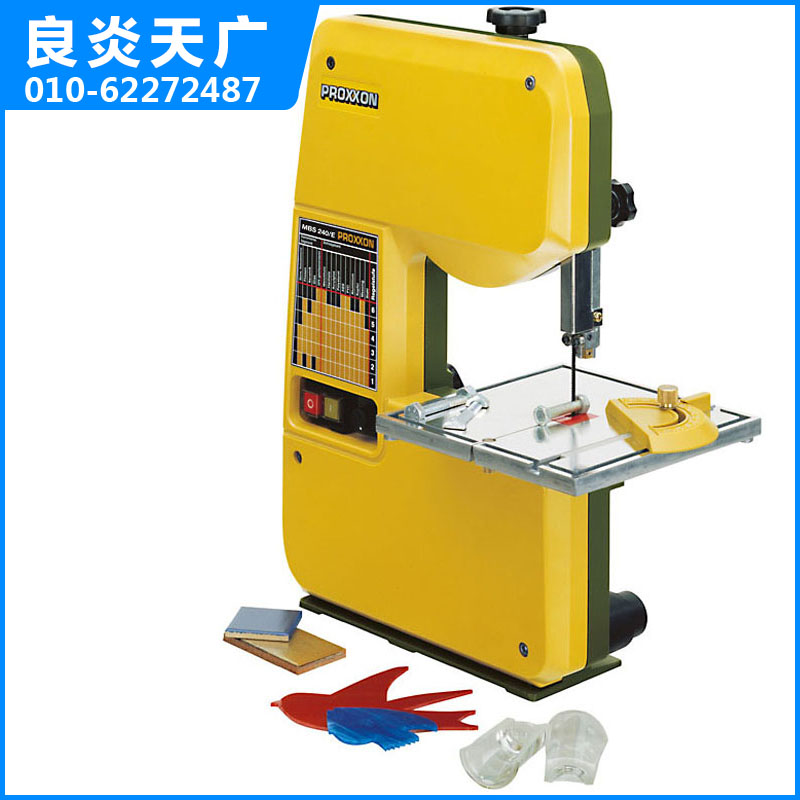

Accessories for the MICRO bandsaw MBS 240/E
TPI stands for the number of teeth per inch (25mm) per bandsaw blade.
Blade guide, separately
NO 28 187

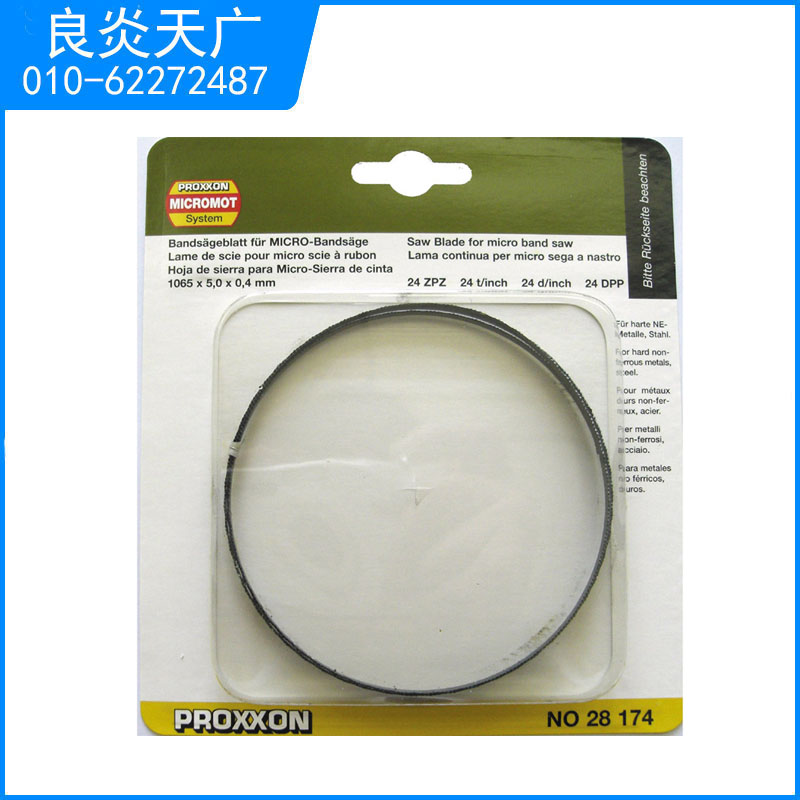

Standard bandsaw blade
Of hardened Swedish steel. Fine-toothed (24 TPI). For steel and brass.
NO 28 174 1,065 x 5 x 0.4mm

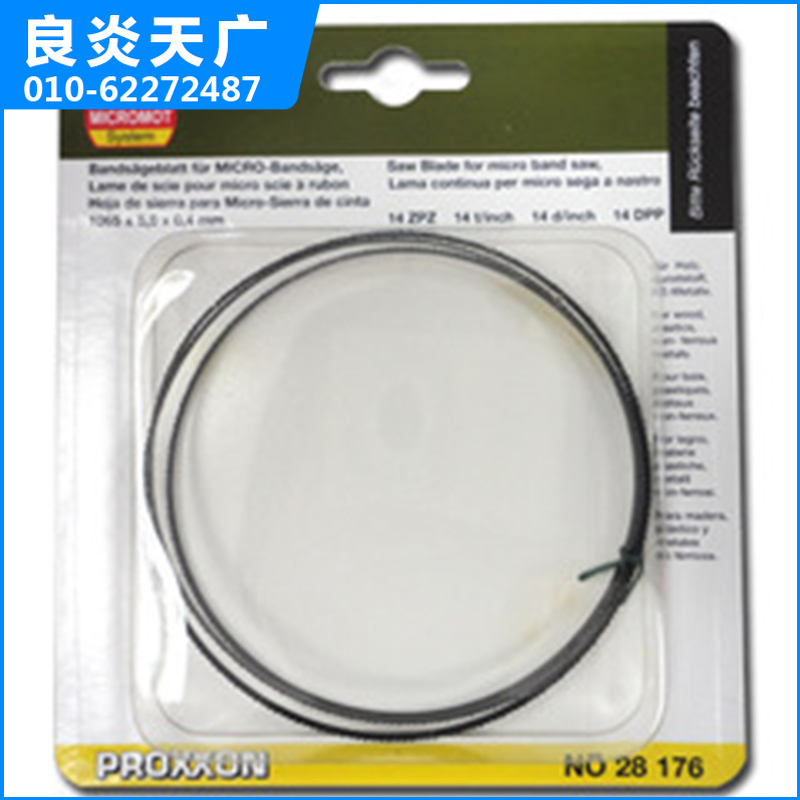

As above,
but coarse toothed (14 TPI).
NO 28 176 1,065 x 5 x 0.4mm

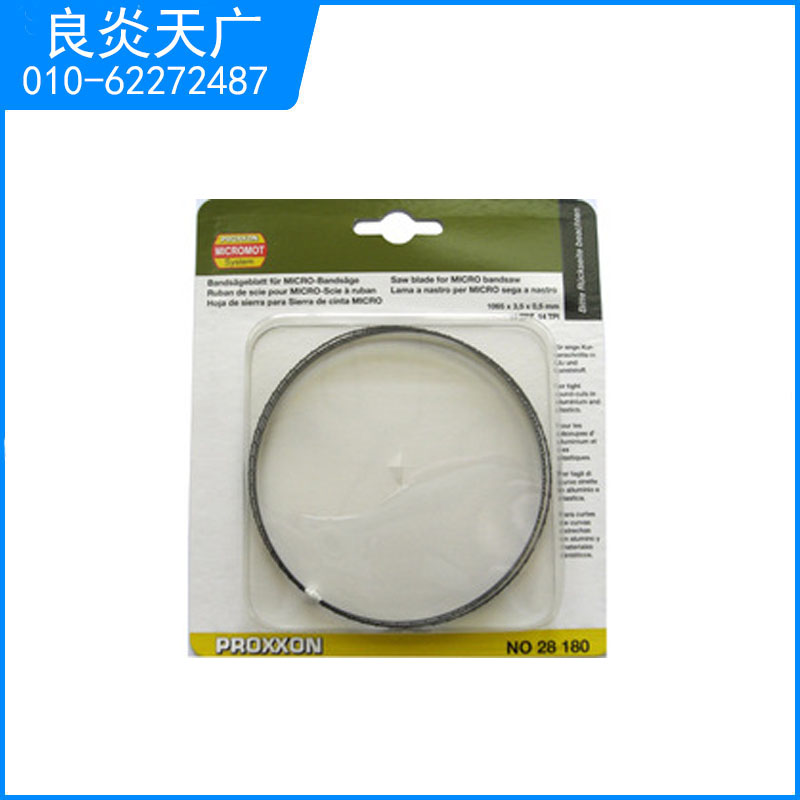

Extra narrow bandsaw blade (3.5mm) for tight radii
Of special tempered steel, with induction-hardened coarse teeth (14 TPI). Especially suited for aluminium and plastics.
NO 28 180 1,065 x 3.5 x 0.5mm

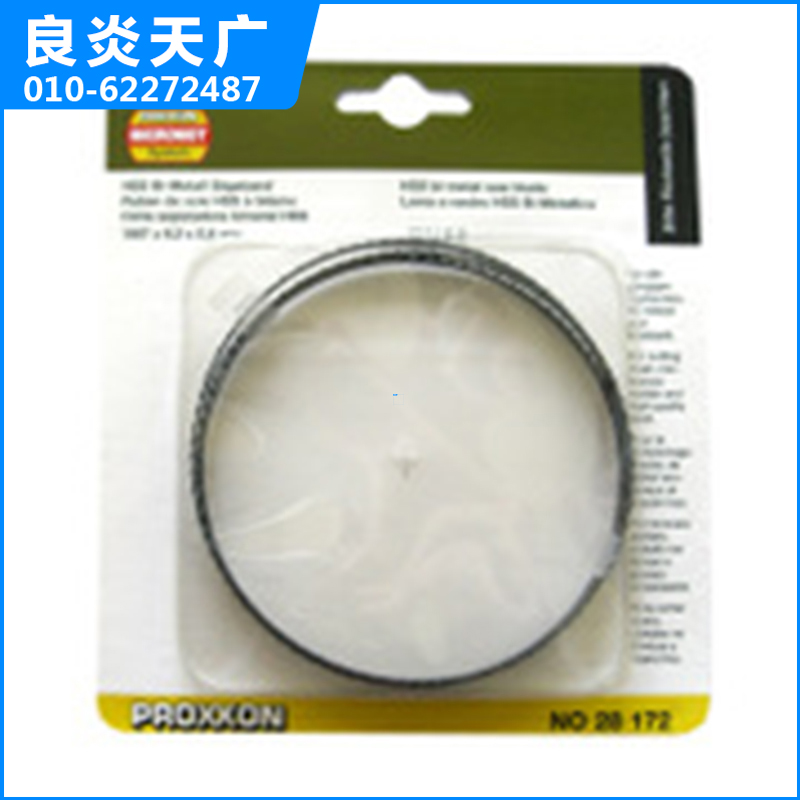

Bandsaw blade of bimetal
Carrier belt of alloyed tempering steel, sawing teeth of wear-resistant high-speed steel. Varying teeth 10 - 14 TPI. Ideal for cutting all standard steel qualities, non-ferrous metals and stainless steel.
NO 28 172 1,065 x 6 x 0.6mm
1.HSS flat wire
2.Carrier belt of alloyed tempering steel
3.Special welding process
Scroll saw band
Extremely narrow (1.3mm), for extremely tight radii. Turns the MICRO Bandsaw MBS 240/E into a scroll saw. Made of tempered special steel. With crimped and offset toothing (10 teeth per inch). For all types of wood, plastics and non-ferrous metals.
NO 28 182 1,065 x 1.3 x 0.44mm

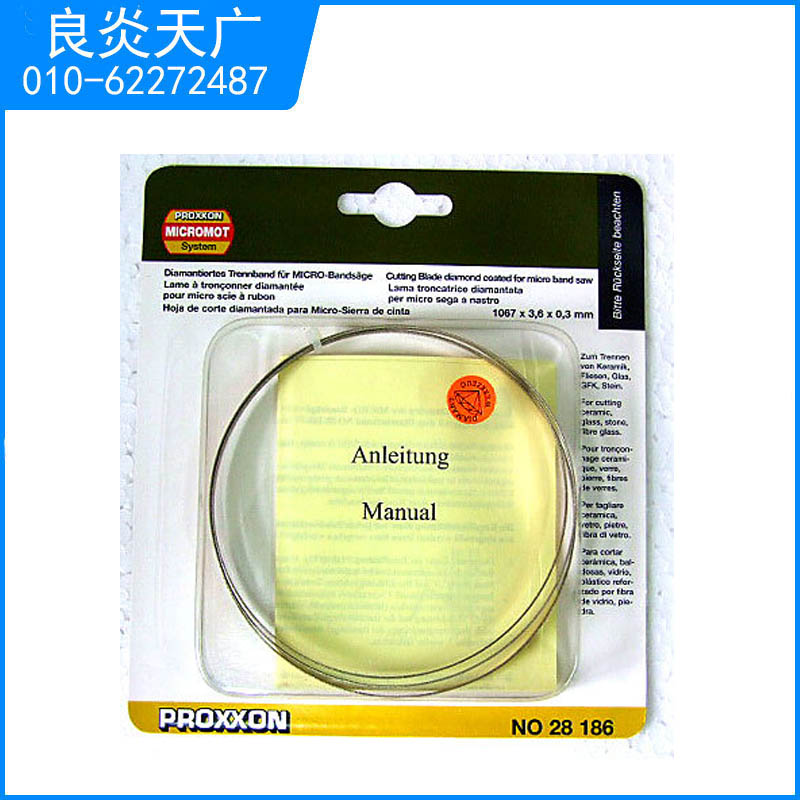

Diamond blade
For cutting stone, ceramics, glass or glass-fibre reinforced plastics. Only proper cooling of the diamond band will ensure optimally cut glass or ceramics and enable a long service life of the band. Sparingly coolant liquid can be applied with a brush.
NO 28 186 1,065 x 3 x 0.3mm

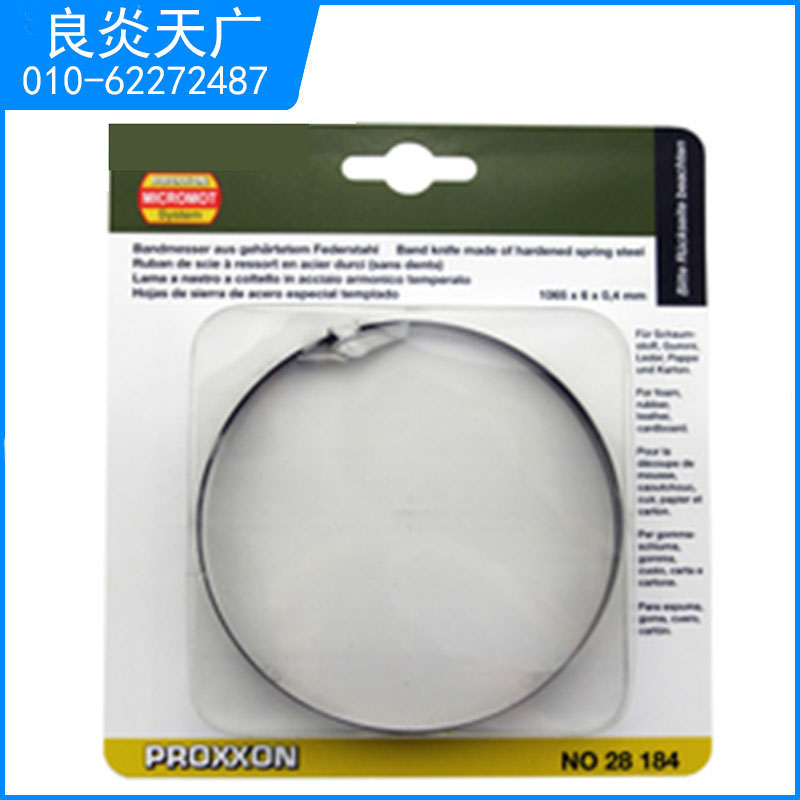

Band knife of hardened spring band steel (without teeth)
For cutting foam, plastic, rubber, leather, cardboard and paper board.
NO 28 184 1065 x 6 x 0.4mm
