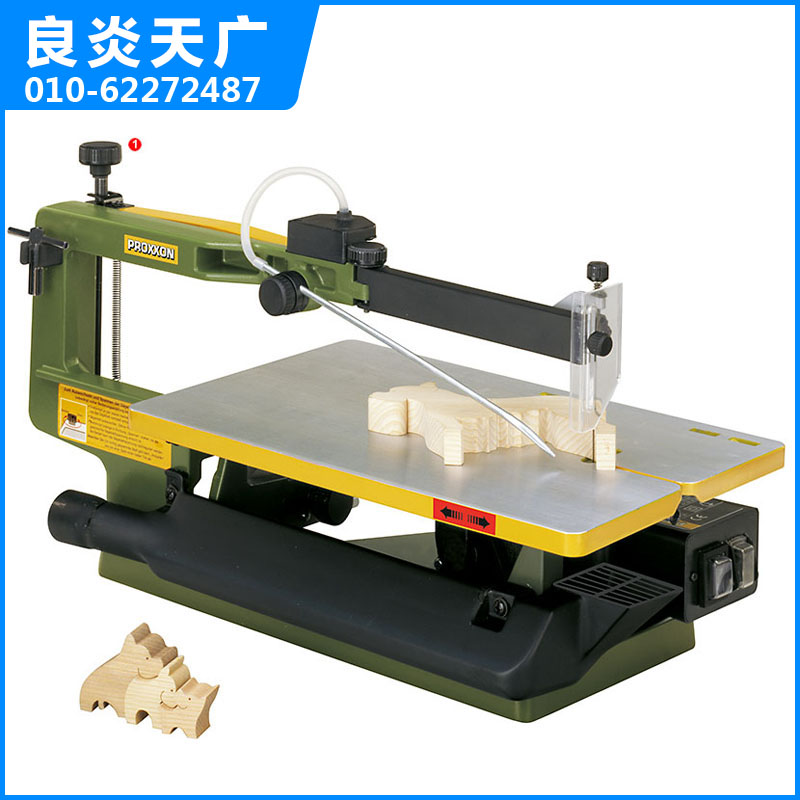

台式双速曲线锯机DS460

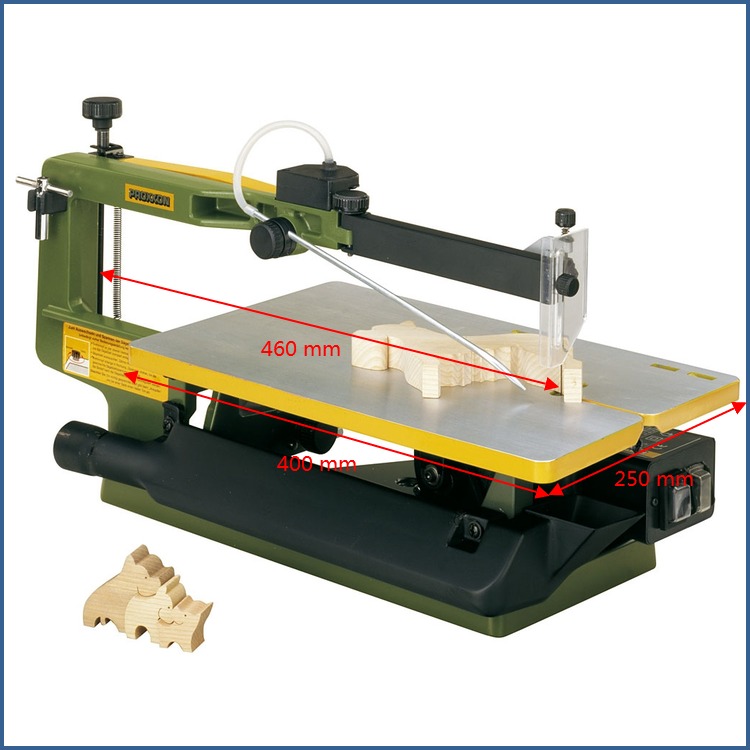

坚固的底座: 铸钢材料的底座, CNC-精密加工,采用粉末喷塑处理. 工作时没有任何震动. 大规模的铸铝件,镁合金支臂,是重量减轻了近40%,容易方便移动. 喉口尺寸460mm。 镁合金的支臂安装在基座上,纤长的支臂可以一览无余的看到加工范围。可调节的吹气装置可以在加工时吹去尘屑。附带的吸尘口可接驳吸尘器。 大型的压铸铝工作台 (400x250mm). 极其方便的锯条更换装置, 可以轻松地拆卸锯条 (见右上角描述). 可定期更换的高夹持力锯条夹持装置: 这种装置可以确保与锯臂真正的对准! 这种夹持装置可以非常牢固的夹持末端不带定位销的锯条. 上述装置对曲线锯来说尤为重要,有一个旋钮可以方便的将期紧固。 工作台的调节角度为 5°-50°
可切割在木材60mm,非铁金属(取决于类型)10-15mm的。也能很容易切割有机玻璃,玻璃纤维增强塑料,泡沫,橡胶,皮革或软木。包括5根粗,细不同的锯条。 DS460配备吸尘器接口,可以做到无尘清洁作业.推荐使用我们的 紧凑型工作室专用吸尘器 CW-matic. 技术参数:
电压:220-240V 功率:强劲,无刷双速电机 (205W) 喉口深度:460mm 冲程:900 或 1,400rpm 锯条行程:18mm. 工作台尺寸:400x250mm. 可通过最大工件厚度:65mm (at45°时为32mm). 长580mm, 宽320mm, 高300mm 重量:20kg NO 27094
以下附件需要再购买,不包含在主机里。
Blade holders for DS 460 (one pair is already included with the machine)
 For clamping regular saw blades with high clamping force: for true alignment of the saw arm. NO 27 096 2 pieces
Even the best machine's performance is limited, if saw blades of mediocre quality are used! Play it safe with PROXXON quality saw blades:
"Super-Cut" scroll saw blades without pins. 130mm.
For cutting hard and soft woods, plastic, Perspex and soft non-ferrous metal.

Coarse-toothed blades (No. 9: 14 teeth per 25mm) NO 28 116 130 x 1.50 x 0.48mm 12 pieces
Standard-toothed blades (No. 5: 17 teeth per 25mm) NO 28 117 130 x 1.20 x 0.38mm 12 pieces
Fine-toothed blades (No. 3: 34 teeth per 25mm) NO 28 118 130 x 0.80 x 0.34mm 12 pieces
Hard materials such as steel and PERTINAX.

Standard-toothed blades (No. 5: 36 teeth per 25mm) NO 28 112 130 x 0.85 x 0.4mm 12 pieces
Fine-toothed blades (No. 3: 41 teeth per 25mm) NO 28 113 130 x 0.75 x 0.36mm 12 pieces
Very fine-toothed blades (No. 1: 50 teeth per 25mm) NO 28 114 130 x 0.60 x 0.3mm 12 pieces
Spiral blade. 130mm long with plain ends (without pins).

These blades cut all directions and obviate the turning of the workpiece (advantageous, especially with bigger workpieces). A 1.5mm hole is required. Ideal for plastic, hard and soft woods.
NO 28 747 130 x 1.2mm 12 pieces
Standard scroll saw blades with pin ends. 127mm.

Coarse-toothed (10 TPI per 25mm) For cutting soft and hard wood, plastics as well as other soft materials and especially thicker work pieces. NO 28 741 127 x 2.61 x 0.51mm 12 pieces
Normal toothed (18 TPI per 25mm) For cutting thin materials, soft and hard wood as well as plastics. NO 28 743 127 x 1.86 x 0.24mm 12 pieces
Fine-toothed (25 TPI per 25mm) For cutting non-ferrous metals, glass-fibre reinforced plastics, plastics, Plexiglas and wood. NO 28 745 127 x 1.76 x 0.25mm 12 pieces
具体产品信息以本公司给出的产品目录及实物产品为准
|
